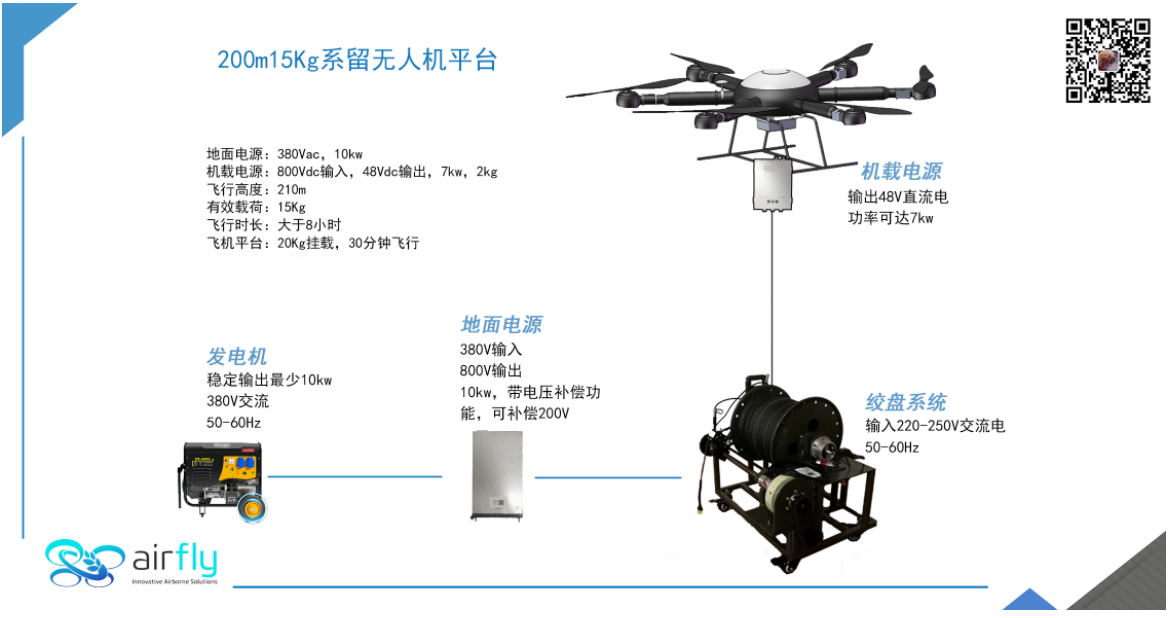

1. UAV system
(1) Maximum takeoff weight: > 35 kg
(2) Maximum takeoff payload: 15 kg
(3) Power supply mode: current supply and battery backup
(4) Control mode: remote control, ground station control
(5) Mooring hovering height: 5-200m
(6) Maximum ascending speed of aircraft: no more than 2m / S
(7) Maximum descent speed of aircraft: no more than 2m / S
(8) Wind resistance: Level 5 (take off / landing); level 6 hover

2. Ground platform
(1) Working temperature: - 20 ～ 85 ℃
(2) Length of mooring cable: ≥ 210m
(3) Take in and pay out mode: automatic
(4) Floor weight: 35kg
(5) Power supply mode: 380VAC generator

3. Aircraft platform
(1) Working temperature: - 10 ℃～ + 55 ℃
(2) Storage temperature: - 20 ℃～ + 60 ℃
(3) Working humidity: 10% ～ 90%
(4) Lightning protection requirements: ≥ 10kA
(5) Anti vibration requirements: meet the requirements of grade 3 highway transportation
(6) Dust proof grade: IP65
